@luke007, do you see any "oily" parts under the chamber or inside the ring that rotates around the airholes?

I'm doing my first burn in of the day and I'm noticing the hot oil smell even under 200F as the unit heats up from room temperature. I'm about to give up on Focus Pro. It looks like this is something new with the newer batches.

Chinook,

His_Highness

In the land of the blind, the one-eyed man is king
@PPN - @korya .... Is it possible that the tube the battery sits in has a break away? Something along the lines of a weak area of the tube that will give way when pressure is exerted from the inside of the tube?

We have been giving the Focus and Focus Pro a pretty good beat down for quite awhile. The pro in particular has been a daily driver on a road that is driven pretty hard. I only purchase well known, non-counterfeit 18650s and once they become weak .... I may try to run a battery recondition if the weakness is new but once they don't hold up ... out they go.

@PPN - you mentioned trying to get a response from the manufacturer .... please let us know how you feel about the customer service and answer. If you aren't happy several of us could make the same request for an answer.....hell, maybe we should anyway to show how serious we are taking this?

His_Highness,

luke007

New Member
Me too!

@luke007, do you see any "oily" parts under the chamber or inside the ring that rotates around the airholes?

I'm doing my first burn in of the day and I'm noticing the hot oil smell even under 200F as the unit heats up from room temperature. I'm about to give up on Focus Pro. It looks like this is something new with the newer batches.

Sorry I don't know if they pics are showing. Any help me with uploading pics?

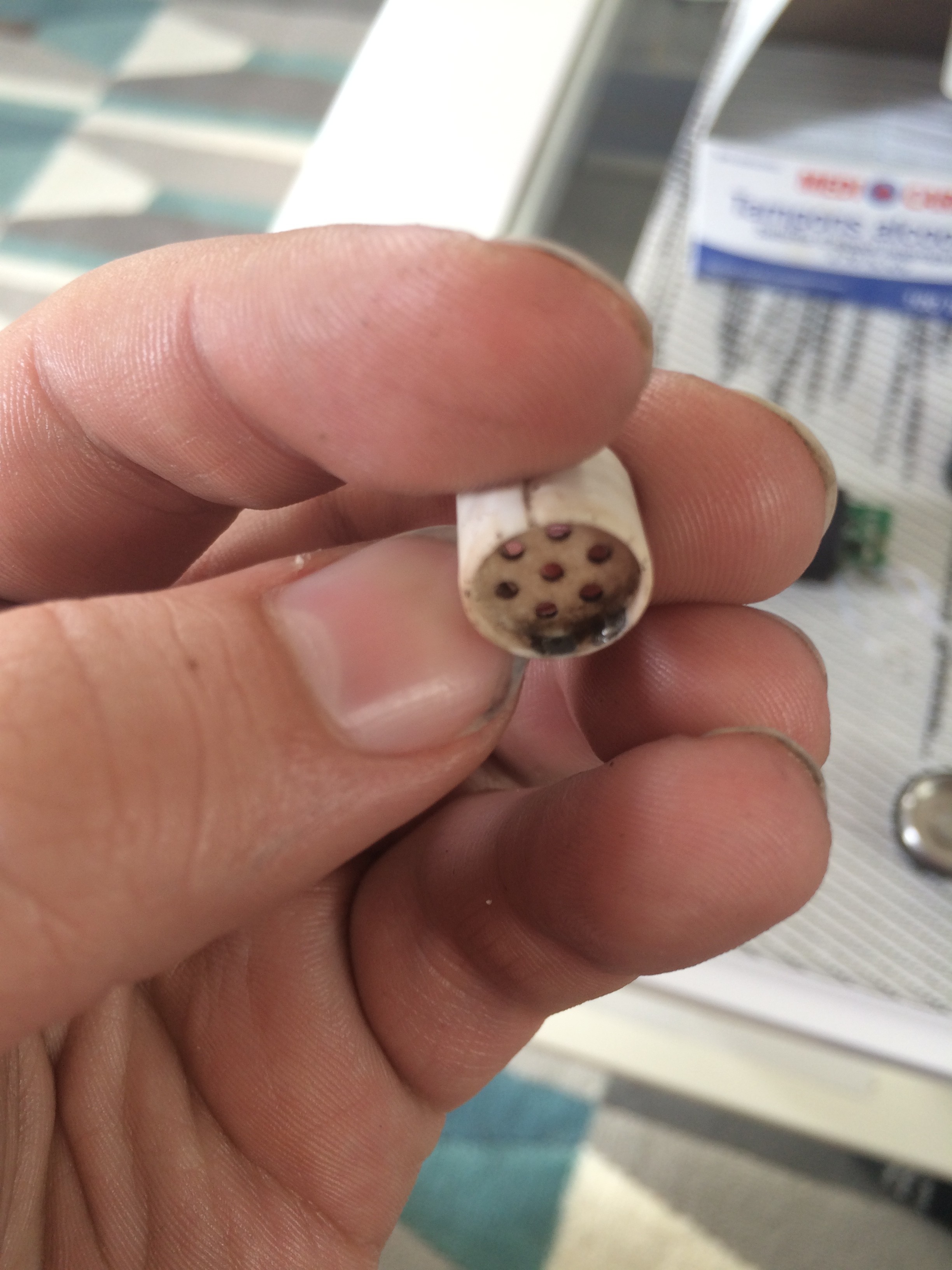

The only oily part was resin but on the bottom the ceramic chamber has 2 metal screens and looks like underneath in the back of the chamber ther was a possible heating element? Again I have no idea as it already came to me damaged.

As for the smell I can tell you I'm getting it from the chamber itself as it darkens when not cleaned regularly

Last edited:
luke007,

korya

New Member
@His_Highness I dont see anything like this: The positive pole inside the housing is a nut with a spring on it, surrounded by a black insulator wich seems to totaly seal the housing on this side. I guess some one could try to get the insulator out, then put the nut (its propably directly connected to the board) back in and see if theres airflow, but then you missing a crucial part of preventing shorts :\ .
The botton cap is just closed, no chance for venting there.

Last edited:

SilentRunner

Well-Known Member
Unfortunately the focus vape cannot be used by my mom. She can't turn it on. She needs to press four times in a row and she is not fast enough.

How is the focus pro switched on? Does it require a double-press?

SilentRunner,

Chinook

Member
Unfortunately the focus vape cannot be used by my mom. She can't turn it on. She needs to press four times in a row and she is not fast enough.

How is the focus pro switched on? Does it require a double-press?

It needs triple press...

Chinook,

MonkeyTime

Well-Known Member
Hi everyone, first time posting. I had this focus vape pro since November and recently has a buddy borrow it and cracked my ceramic chamber somehow. I managed to get money back for it but wanted to do a fix it myself project. I dismantled it and was wondering if anyone knows what the wiring set up would be here. Also, I noticed there was a soldered part underneath the ceramic chamber. Any help or pictures would be greatly appreciated. Please help fellow vapers!

I haven't done a tear apart on mine, how did you disassemble it? If they come apart easy, I'd be willing to tear one down, maybe even send you the ceramic you need.

Let's see some pics!

**Edit, looks like I was late to the race!

MonkeyTime,
  • Like
Reactions: luke007

korya

New Member
Mhh just watched the pics of luke007, tbh, i dont know how u would solder those wires back on the heating element. Did a quick research how this kind of ceramic heater works but couldnt find anything.

For the oily taste/smell it could be the very well solderflux leftovers on the solderjoints at the heating chamber, cooking everytime you fire up the unit.

Last edited:
korya,
  • Like
Reactions: Chinook

Chinook

Member
Mhh just watched the pics of luke007, tbh, i dont know how u would solder those wires back on the heating element. Did a quick research how this kind of ceramic heater works but couldnt find anything.

For the oily taste/smell it could be the very well solderflux leftovers on the solderjoints cooking everytime you fire up the unit.

Thanks @luke007!

Wow, it looks like the solderjoints are right below the chamber! That pretty much "kills" the notion that the airpath is isolated from the electronics. Some of these solders can contain lead too! So everytime we inhale, the air flowing is over those solder joints?

They should have extended down low resistance wires from the chamber and then soldered them away from the hot chamber.

Chinook,

korya

New Member
Well the circuit boards seems to be isolated from the chamber atleast (and the battery housing..), iam assuming this because i cant blow air into the usb port.

korya,

Chinook

Member
Well the electronics seems to be isolated from the chamber atleast (and the battery housing..), iam assuming this because i cant blow air into the usb port.


@luke007, do you remember if there was an airtight barrier between the electronics and the bottom of the chamber?

Chinook,

korya

New Member
Another thing: The spring on the + pole nut seems to be just glued on, do i see this right ?? That thing could easily get detatched if its just glued and produce a short. You normally put springs on the negative side in a tube so you ve no chance to short the positve side of the battery with the negative (which is in this case the whole housing...) with the spring.

Last edited:
korya,

luke007

New Member
I'm getting ready for work but I will post more photos tonight with a breakdown of how to take it all a part. If anyone does this can they send me pictures of how theirs looks? Please and thank you, talk to you all later tonight


luke007

New Member
Ok guys im back, here are the pictures of the breakdown.

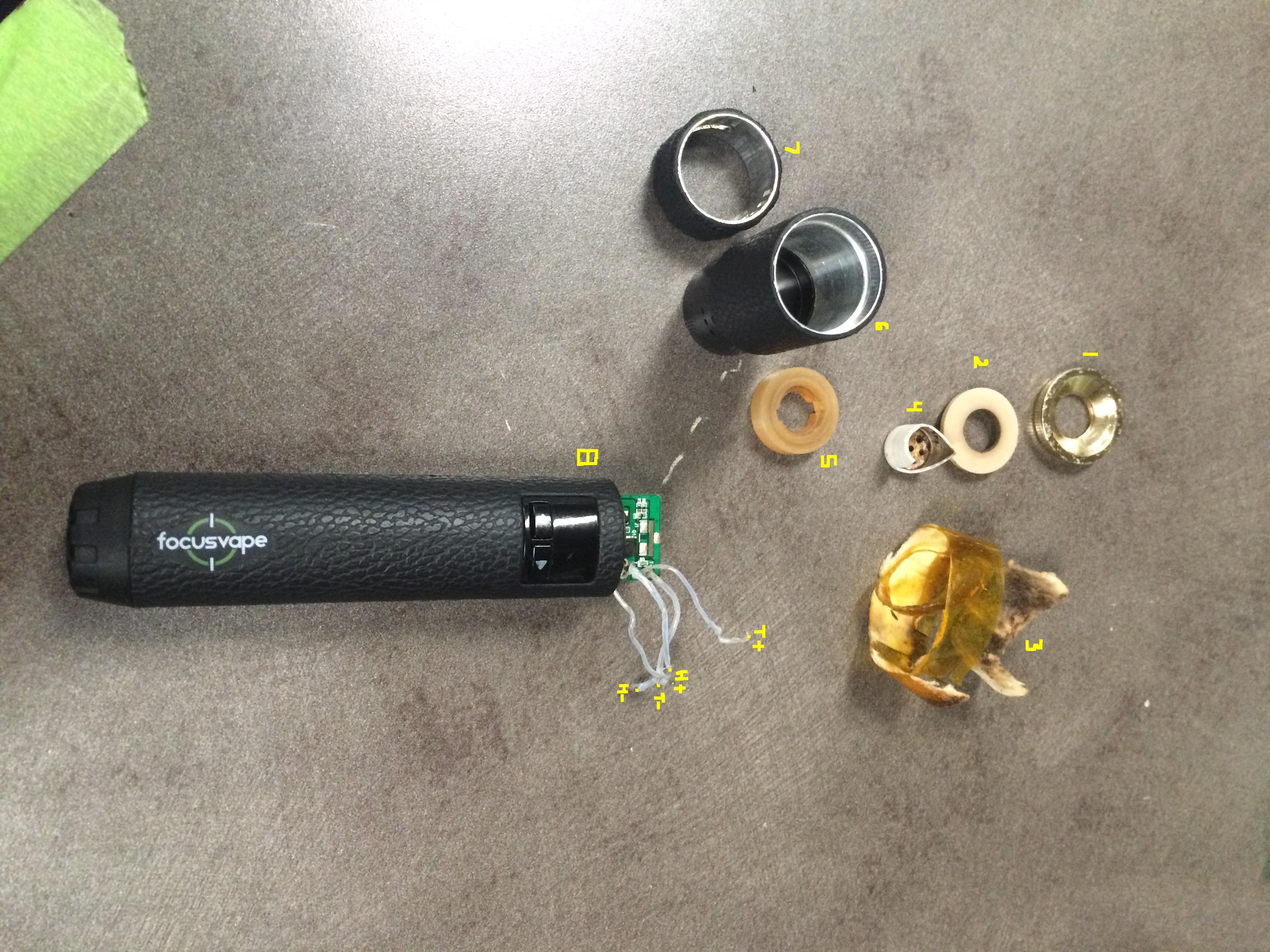

In order to dismantle/modding, wiggle the gold top (1) until it comes off. Then underneath it is going to be a rubber plate (2) that houses the ceramic chamber (4 - mines broken), and around it is insulation (3) and on the bottom of the ceramic chamber has another rubber piece that sits on the bottom housing that has the airflow going to the chamber.

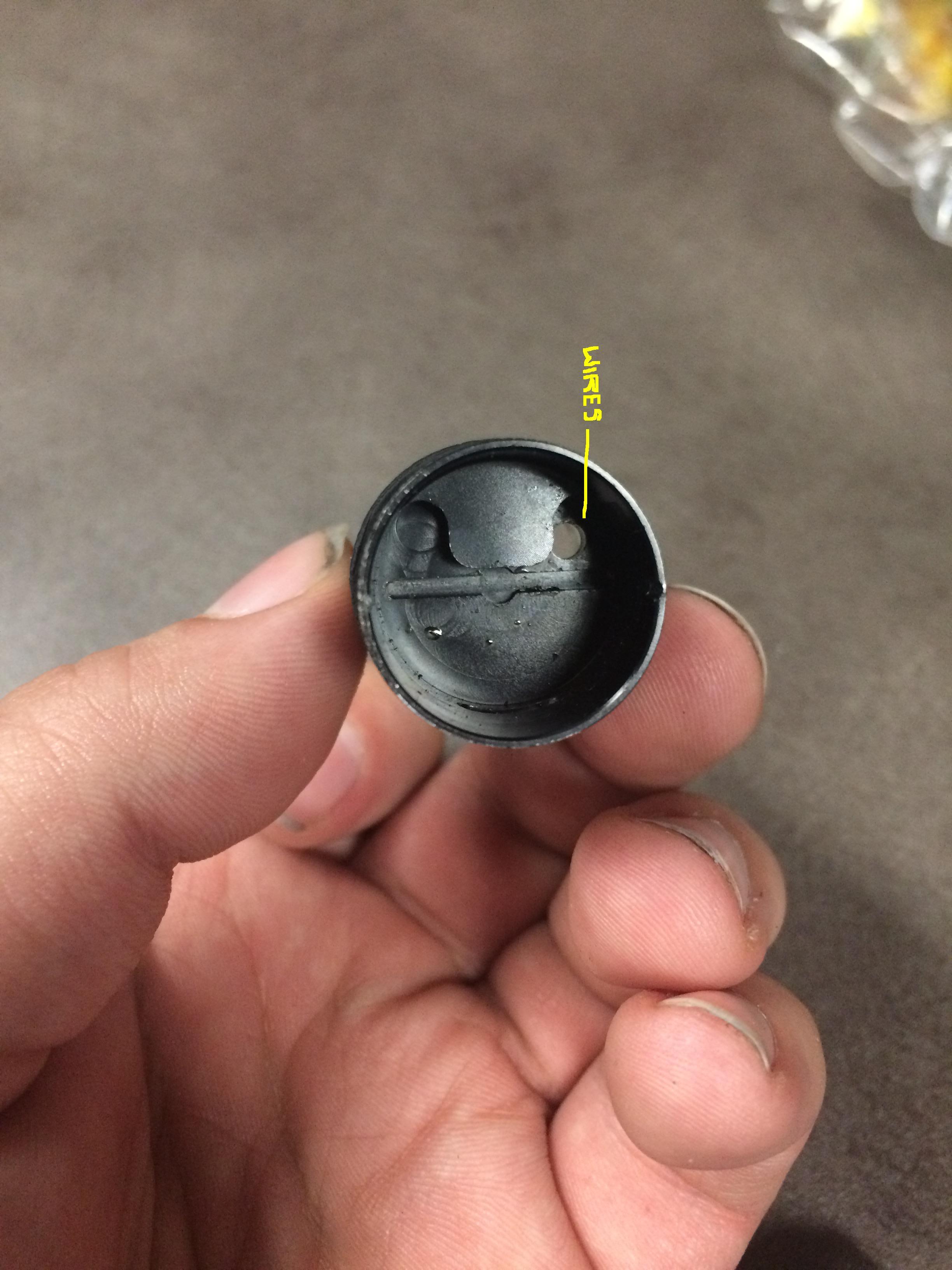

As you can see, there are the 3 air holes for air control there, and next to it a bigger opening for the wires to make contact with the ceramic chamber. Please be careful when removing as the wires could be ripped off the bottom ceramic.


Please note, it looks like there are TWO soldered parts that could come from the H+/H- or the T+/T-. This is what i need help with please.

Hope this helps, really hope i can get this fixed because its one of the better vaporizers i've tried. Any help would mean a lot, and hope someone could help me.

Thank you.


luke007

New Member
@luke007, do you remember if there was an airtight barrier between the electronics and the bottom of the chamber?

Hi, yes there was. The pictures i posted didnt show this but when the wires go through the bigger hole next to the 3 air holes, it was sealed with clear silicone. Only way for air to pass through would be from the outside air reg. holes directly into the bottom of the chamber itself.

I tried looking everywhere for a teardown for this but nothings up, perhaps still too new?

Thanks.

luke007,

luke007

New Member
I haven't done a tear apart on mine, how did you disassemble it? If they come apart easy, I'd be willing to tear one down, maybe even send you the ceramic you need.

Let's see some pics!

**Edit, looks like I was late to the race!
Re: MONKEY TIME - Yes the teardown is pretty easy, if i had a working one i would do but seems pretty confusing seeing as i got the vape in this state. I did order myself a new one as my friend reimbursed me for it, and might do a teardown of that one when it comes in next week so i can duplicate it on this broken one.

luke007,

Chinook

Member
Hi, yes there was. The pictures i posted didnt show this but when the wires go through the bigger hole next to the 3 air holes, it was sealed with clear silicone. Only way for air to pass through would be from the outside air reg. holes directly into the bottom of the chamber itself.

I tried looking everywhere for a teardown for this but nothings up, perhaps still too new?

Thanks.

Thank you very much for the teardown pictures.

I'm confused about the three holes next to the bigger one that the electronic wires come in, piece #6 I think? It looks like those holes are at the bottom but not drilled all the way. And there are 3 air holes drilled on the side of piece 6 right?

Also, how about the insulation, it looks darkened? Do you think it's decaying?

Have you noticed if any of the parts are "oily" or burned especially the rubber ones?

Regarding the four wires, I assume two are going to the ceramic chamber and two to the USB port. Are you trying to figure out which wires go to the USB port and the ceramic chamber?

Chinook,

luke007

New Member
Thank you very much for the teardown pictures.

I'm confused about the three holes next to the bigger one that the electronic wires come in, piece #6 I think? It looks like those holes are at the bottom but not drilled all the way. And there are 3 air holes drilled on the side of piece 6 right?

Also, how about the insulation, it looks darkened? Do you think it's decaying?

Have you noticed if any of the parts are "oily" or burned especially the rubber ones?

Regarding the four wires, I assume two are going to the ceramic chamber and two to the USB port. Are you trying to figure out which wires go to the USB port and the ceramic chamber?

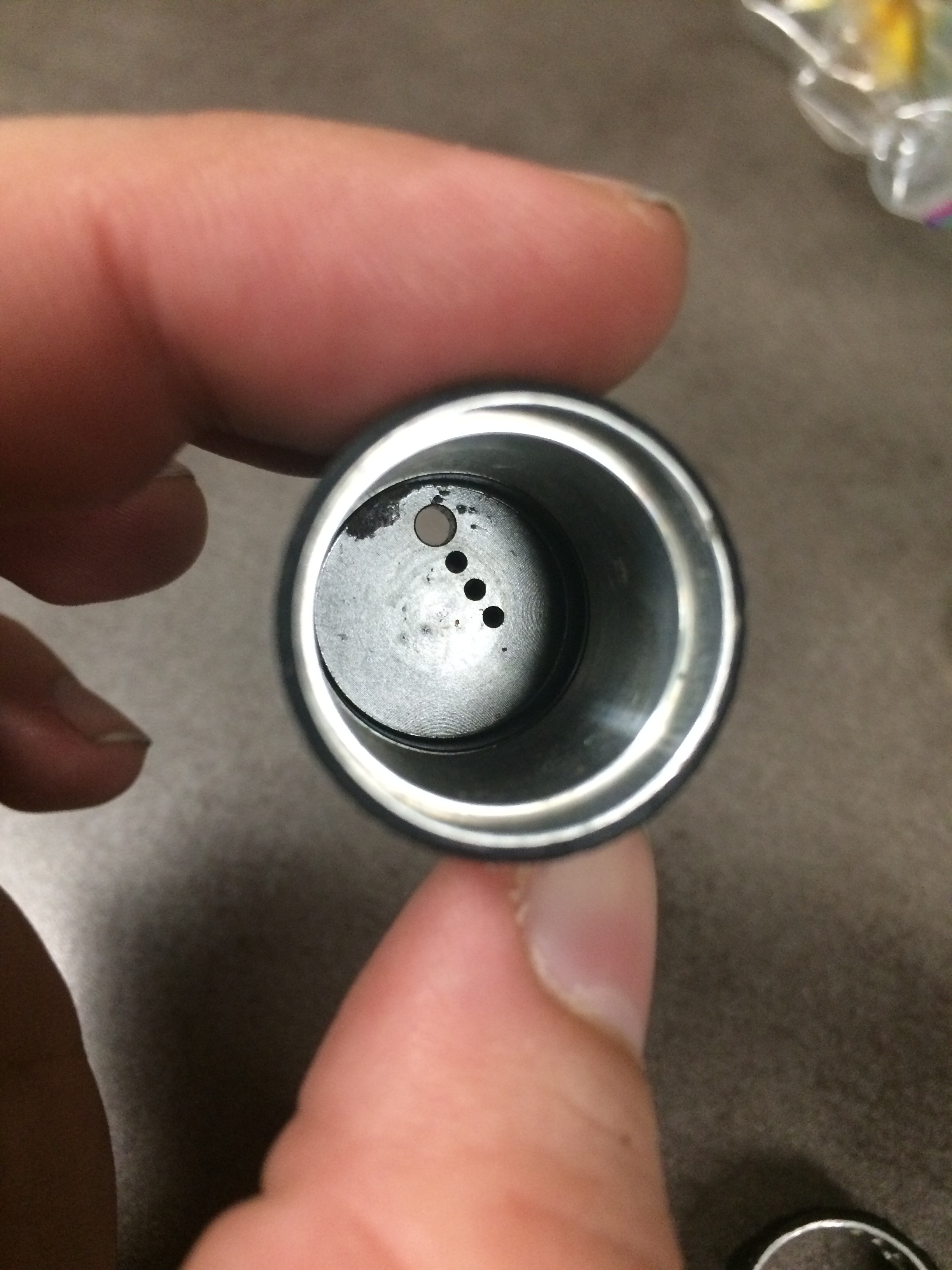

Hi, yes those 3 holes are the adjustable airflow, you cant see it in the picture but from the top each hole makes an "L" which is where your pulling the air from/adjusting the intake. The top of the "L" goes into the chamber and the right side of the "L" is the area that you pick how much flow you want.

The insulation is still pretty good, white/light brown, the reason its dark in the picture is that i had my alcohol swabs sitting on top of it accidentally cleaning everything out, and it absorbed the dirty chamber resin.

There was nothing oily throughout, even under the chamber surprisingly but the rubber seals one is the yellow/orange rubber color, and the other is a light cream color, none look worn out and can be cleaned with an alcohol swab.

When i was moving the wires from the ceramic chamber part, all 4 wires went through the bigger hole next to the 3 air holes. There was nothing that needed to be attached to the usb. I managed to take another pic for you guys.



This is just by judging the wires and the solder under the chamber but i think the T+/T- (copper) go together and are swirled and soldered onto the one side of the ceramic chamber, and the H+/H- (steel?) is attached to the other?

Ya im just trying to figure out what goes where.

Thanks guys.

luke007,
  • Like
Reactions: Elac

djurodjakovic

Well-Known Member
If I understand correctly there is some kind of silicon/rubber insulation between electronics and chamber? It's good that it's not sucking air thru electronics but I'm not very pleased with silicone/rubber in the path, especially so near the heat source. I was really hopping they avoided that and used only metal, ceramic and glass in the vapour path...

On the battery safety. Did anyone send email to focusvape and ask about this possible issue?
where would you recommend to drill and how big dia?

djurodjakovic,

Chinook

Member
@luke007, thank you for the info and the new picture.

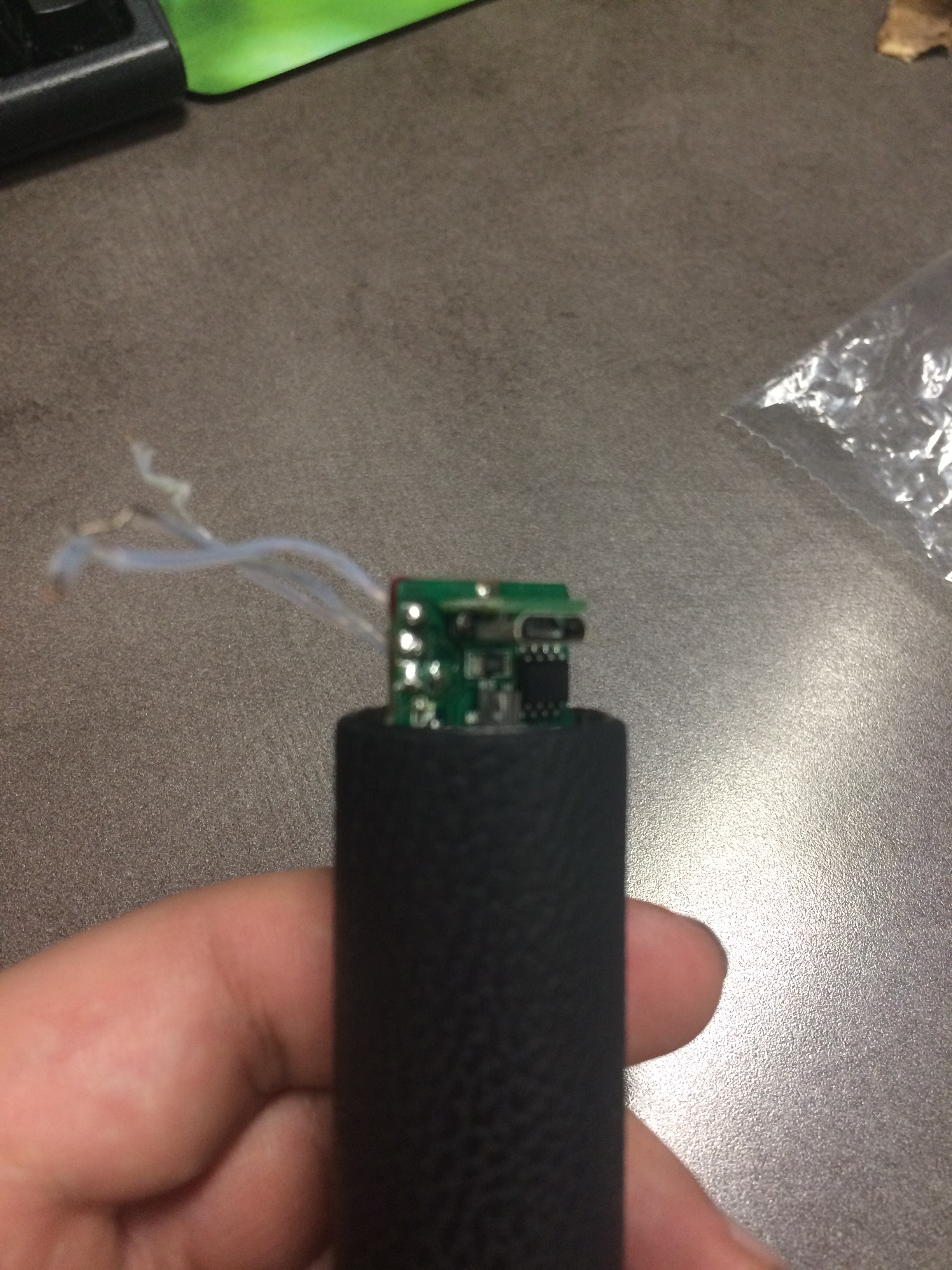

Looking at the new picture, it looks like USB port is soldered on the circuit board, right? If that's the case, then I was mistaken initially -- I thought that USB charging port was attached to part 6. I'm also not clear on the wiring. Why are there 4 wires? Can you post one more picture showing the back side of the circuit board where the wires are originating from?

Chinook,

Chinook

Member
If I understand correctly there is some kind of silicon/rubber insulation between electronics and chamber? It's good that it's not sucking air thru electronics but I'm not very pleased with silicone/rubber in the path, especially so near the heat source. I was really hopping they avoided that and used only metal, ceramic and glass in the vapour path...

On the battery safety. Did anyone send email to focusvape and ask about this possible issue?
where would you recommend to drill and how big dia?

I think the rubber ring sits under the ceramic chamber and metal housing with the airholes? I'm not please about that either.

Chinook,
