The Cork Corner

Discussion in 'DIY' started by ander, Mar 23, 2017.

Tags:
  1. ander

    ander Well-Known Member

    Messages:
    486
    Location:
    The Vapican Chapel
    [​IMG]
    Corky update soon... :haw:

  2. Used2use

    Used2use Sometimes to stupid to become a fool

    Messages:
    671
    A question for the cork pro @ander - what is the best way to make a clean round hole through the cork?
    Are there special shaped drills for cork, or might a punch work?
    My best results so far were to start with a small drill and then step up the drill size, but i'm still not satisfied with the smoothness of the inner side...

  3. ander

    ander Well-Known Member

    Messages:
    486
    Location:
    The Vapican Chapel
    @Used2use Hey thanks for the title but... do you see anything pro im my lathe..?!:freak:

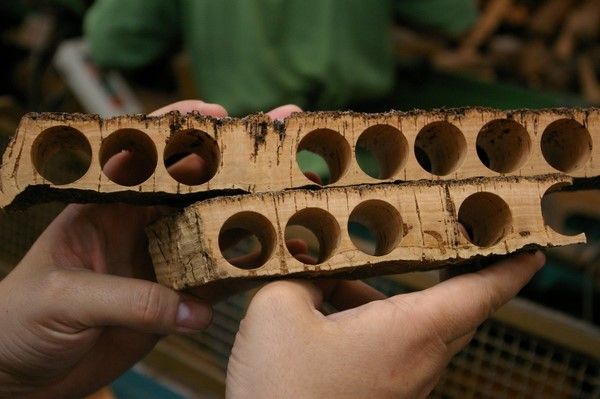

    The outer surface (that is always very smooth) seems cutted with a sort of "rotating tubular blade"...
    [​IMG]

    [​IMG]
    so I presume that a "sharped tube" would be an interesting tool to try with... I mean... it looks like cork prefers to be cutted than drilled.

    Anyway, the last pieces I drilled came better without step drilling: if I need a final diameter of 10, I drill with a 10 or 9 tip and then I use sandpaper: first a coarse grade if I have to remove more material, and then with a fine one to polish.


    EDIT
    I didn't caught the term at the moment... so, something like that:
    [​IMG]

    Cork Borer seems to be the term.
    Thank you! Made a new discovery...

    Last edited: Mar 12, 2018
  4. Used2use

    Used2use Sometimes to stupid to become a fool

    Messages:
    671
    Thanks! Well it's pro compared to me ;) something like a glass drill might be perfect, have to look for diameters...but the shavings/dust still as to come out while drilling somehow in my mind :hmm:

    ander likes this.
  5. ander

    ander Well-Known Member

    Messages:
    486
    Location:
    The Vapican Chapel
    Well, it looks like that with the tool above you don't have this problem. I'm reorganising my "workshop" these days, but I will soon try to sharpen an end of a small tube, mount it on the drill stand and use it as a drill bit.

  6. ander

    ander Well-Known Member

    Messages:
    486
    Location:
    The Vapican Chapel
    We'll have to wait a bit for the announced update. 2 weeks passed from my first contact with a cork company resident in this island, where cork trees grow (I lived there for a while, in one of my migrations to the south). I was ready with the money since the first moment. Now I think I'm near to finalize the deal. 3-4 days are passing between my mails and their response. For a few hundred top quality cork stoppers... 15 days of negotiations... That's also southern Italy and I LOVE IT! Ahhh... the slow rithms of the south... something like Mexico for you US guys I suppose..!

    [​IMG]
    Cork harvesting

    Last edited: Mar 21, 2018
  7. natural farmer

    natural farmer Well-Known Member

    Messages:
    3,116
    Location:
    High in a Greek mountain!
    Is this ok for the trees buddy?

    P.A.M. and ander like this.
  8. ander

    ander Well-Known Member

    Messages:
    486
    Location:
    The Vapican Chapel
    A fair and understandable concern. One of the reasons why I needed some time to find a good dealer is also this one: top companies only sell top quality corks and so they only use aged trees. The bark of cork oaks regenerate every 10-12 years, so professionality and tradition is required and Sardinians are an elite on that. So don't worry friend, all the production process is made to respect the trees, since a damaged tree will risk to die and so... no cork anymore.

    GreenHopper, rz, Mulchmaker and 5 others like this.
  9. ander

    ander Well-Known Member

    Messages:
    486
    Location:
    The Vapican Chapel
    New corks have arrived and quality is really at top! The features of this material continue to amaze me...
    I'm on a really busy phase and I will produce a deeper report of my progresses as soon as possible. So, for now, just a taste:

    OmniCork XL
    [​IMG]
    :haw:

    Diggy Smalls, muunch, cpk and 9 others like this.
  10. natural farmer

    natural farmer Well-Known Member

    Messages:
    3,116
    Location:
    High in a Greek mountain!
    That's a beauty buddy!!!

    rz and Squiby like this.
  11. ander

    ander Well-Known Member

    Messages:
    486
    Location:
    The Vapican Chapel
    As the CORKY VC project tries to expand to something really reliable, the real issues obviously come out. As expected the "magic" ability of cork stem to hold the VC tip by itself is not a constant: first prototype still works pretty well, second and third have problems due to the natural cavities of cork. So... new prototype has a 10mm long SS316 tube of diameter 10mm on the top to hold the tip, and it works but the interior diameter of 8mm seems somewhat loose... in fact, VC "M" tube measure 7.something inside. Anyway it looks like the dryness of the o-rings increases the issue, and some olive oil helps. The "omni" feature is born from a mistake: I've cutted the cork 5mm shorter and found the condenser too long after assembly... but soon discovered that sliding the mp will result in a really handy omni-like regulation. Loved the star on the carb hole from the first time; still convinced that it makes a big difference...

    [​IMG]
    So for the moment, I insist. And the conclusive "floating test" approaches...

  12. ander

    ander Well-Known Member

    Messages:
    486
    Location:
    The Vapican Chapel
    Ha ha. Complications... complications...
    Why rubber? Cork does not need o-rings. No o-rings means no steel tube. No steel tube means a lighter and thinner shape. As often happens, simplicity is the way. So I'm back to the first prototype, but with the plus of a rude omni feature and an improved hold-the-tip magic... I feel we are close..! :haw:

    [​IMG]

    And it finally fit the CorkyCase...
    [​IMG]
    :smug:

    Last edited: Apr 6, 2018
  13. ander

    ander Well-Known Member

    Messages:
    486
    Location:
    The Vapican Chapel
    Some close pics.

    A carb shape I'm experimenting...
    [​IMG]

    The thin border of case joint is about 1mm. It has been first lathed and then drilled. The compact softness of the cork can be surprisingly strong...
    [​IMG]

  14. GreenHopper

    GreenHopper 20 going on 60

    Messages:
    1,775
    @ander that's looking stunning!

    Love the fact that you've done away with the O rings.

    Are you treating the cork with anything for durability or does it not need it?

    Just curious is all.

    muunch, ander and Squiby like this.
  15. ander

    ander Well-Known Member

    Messages:
    486
    Location:
    The Vapican Chapel
    I use olive oil. For durability and also because it helps with the not exactly good smell that cork has.

    muunch, Squiby and GreenHopper like this.
  16. GreenHopper

    GreenHopper 20 going on 60

    Messages:
    1,775
    Cool, is the smell that noticeable and does it wear off?

    Maybe pre soaking the cork might help reduce it further? :shrug:

    ander and Squiby like this.
  17. ander

    ander Well-Known Member

    Messages:
    486
    Location:
    The Vapican Chapel
    In fact no, the smell is not heavy and by my experience with time, use and oil (or whatever natural lubricant) tends to decrease. I never felt the need of a deeper treatment; I wash it with hot water and start using it. The last corks I've received have been treated with hydrogen peroxide, so they are sanitized and odorless; after drilling and shaping some smell gets back but nothing annoying.

    Squiby and GreenHopper like this.
  18. GreenHopper

    GreenHopper 20 going on 60

    Messages:
    1,775
    Sounds perfect, I think cork is a stunning material and it sounds like you've managed to work it into an awesome VC stem. :tup:

    ander and Squiby like this.
  19. asdf420

    asdf420 Well-Known Member

    Messages:
    402
    olive oil goes rancid, though. could use linseed oil? maybe coconut or mineral

    My 14mm adapter (basically a cork cone w/ a ~9mm hole through it) got damaged and wasn't giving a good seal. trying elmer's glue on it...

  20. ander

    ander Well-Known Member

    Messages:
    486
    Location:
    The Vapican Chapel
    My corks smell pretty good... :). But tastes apart... non-toxic is the only thing that matters I guess, since cork is porous, and in my case the MP is in cork too. Love the DynaVap recipe: Hemp oil + bees wax.
    Well cork comes in many forms and qualities, and some zones are weaker... surely not an homogeneous and a somewhat delicate material. And sometimes only when the work is done (drilling, shaping) you know if the piece is good. I used vinylic glue with good results, in the lower part of the corky VC casing for example, that was kinda loose. But when heat or airflow are involved in the problem, I simply trash the defective/damaged piece and make another one.

    GreenHopper and asdf420 like this.
  21. Kozzmozz

    Kozzmozz Infinite realities, infinite possibilities

    Messages:
    182
    Location:
    Belgium
    These are amazing! Any tips on getting access to such good quality cork?
    Would love to try for myself making a corky vapcap.

    And if that fails, do you aim to start selling these? :D

  22. ander

    ander Well-Known Member

    Messages:
    486
    Location:
    The Vapican Chapel
    Hi Kozzmozz,
    for EU, here is where I took them. There are not many companies that are ready to satisfy small requests and this is one. Take some time to look into dimensions and be sure to grab the Top Flor quality. If you do want (or don't want) the external hydrogen peroxide treatment (bleached look), be sure to specify it.

    Well... no reasons to hide it anymore I guess... so yes! I'm planning it. But I need some time to upgrade some of my tools and do some more tests... a matter of weeks I presume and I'll be ready to ask for the "accessory maker" permission and start a new thread for the... CorkyVap! Or OmniCork..? Well... whatever, Corky it will be... :D

    All under the Dynavap blessing, obviously... :bowdown:

    Last edited: Apr 10, 2018
  23. Kozzmozz

    Kozzmozz Infinite realities, infinite possibilities

    Messages:
    182
    Location:
    Belgium
    Awesome! And thanks for the link, a 100 pieces are still a bit much, will try some cork I have laying around first.
    But to be honest, I will keep a close eye out on your progress and presuming you are EU based as well, I might be an early customer! :lol:

    Keep it up!
    Cheers

    GreenHopper and ander like this.
  24. ander

    ander Well-Known Member

    Messages:
    486
    Location:
    The Vapican Chapel
    I'm sorry for the pics disappearance... looks like Postimage has reset some servers.
    I'll go with imgur from now, and I will try to mend the massacre... :zombie:

    GreenHopper likes this.
  25. Kozzmozz

    Kozzmozz Infinite realities, infinite possibilities

    Messages:
    182
    Location:
    Belgium
    I can still see your posts @ander

    GreenHopper and RUDE BOY like this.
