Discussion in 'E-cig Based Portables' started by graydeh1, Mar 27, 2019.

  1. graydeh1

    graydeh1 TRVP ATTY REP

    Messages:
    285
    Location:
    Toronto
    [​IMG]
    Hi, bbvapesbrvnd (behind the popular ecig atty B2K RSA) has designed an atomizer , TheTRVP RDA, is geared towards concentrates. The thought in the design process was to address issues with current setups and tweak things for wax usage (instead of macguyvering e-juice RDA's).

    I've told the designers that this is the builder's dream. It can handle many different configurations and mesh will be utilized for wax, I think for the first time!

    I have a prototype and have tested it pretty extensively, though I'm limited at the moment with no ceramic inserts yet, they're being produced. Pre-orders are open now.
    My findings already have been extremely positive and I will post all my videos and pictures here, any questions I'm more than happy to answer.

    videos:
    These videos and pics are with The TRVP prototype, the production units will have a matte black top cap and a more polished look.

    Click to play YouTube Video


    Click to play YouTube Video


    Click to play YouTube Video


    Click to play YouTube Video




    Product link: pre-orders are open use code DVBOMIZER10 for 10% off
    https://ecigarettes.ca/products/dvbomizer-by-bb-vapes-brvnd

    Last edited: Mar 27, 2019
  2. Accept

    Accept Well-Known Member

    Messages:
    1,044
    Cool - glad to see other e-cig makers jumping on the concentrate bandwagon. Doubt this RDA will be a game-changer, but it sure looks fun to play with. In one of the pics, it looks like they're running mesh along the bottom with a regular coil on top, in parallel. That should take care of any reclaim.

    graydeh1 likes this.
  3. graydeh1

    graydeh1 TRVP ATTY REP

    Messages:
    285
    Location:
    Toronto
    Hi, yes you nailed it! the mesh should get anything that drips off the coil, not having to deal with reclaim will be nice. The designers telling me that we'll be able to stack the mesh as well ,that could be interesting.

  4. graydeh1

    graydeh1 TRVP ATTY REP

    Messages:
    285
    Location:
    Toronto
    Here are all the pics so far, remember this is the prototype and I was very limited in testing as I do not have the ceramic inserts (cups) yet, but I am very impressed with the efficiently, taste, vapor production and effect. Production units will be matte black and will not have the honeycomb design for the air intake on the topcap. Better to have a solid cutout to deal with any oil that may get into that area.

    https://ibb.co/qMtrYfr
    https://ibb.co/qFktGHR
    https://ibb.co/fN0Bkm7
    https://ibb.co/XZbGJQ1
    https://ibb.co/P91G7jt
    https://ibb.co/hHDRKSM
    https://ibb.co/F6ggNYp
    https://ibb.co/JCz7tdr
    https://ibb.co/nLNPP5s
    https://ibb.co/DD1z3rc
    https://ibb.co/7rGKrx6
    https://ibb.co/P5PQTrv
    https://ibb.co/VHn6pQc
    https://ibb.co/cNsWRD3
    https://ibb.co/NmN114S
    https://ibb.co/QKCwq7j
    https://ibb.co/v1KS0DG
    https://ibb.co/9WkD6bG
    https://ibb.co/YkHwRYJ
    https://ibb.co/Wv4x6vB
    https://ibb.co/XDvrqgc
    https://ibb.co/HNmPfjN
    https://ibb.co/vXpyrC1
    https://ibb.co/xHRpyxv
    https://ibb.co/wWxmG9N
    https://ibb.co/BCGw0g6

    Adobewan likes this.
  5. Olde7

    Olde7 Electronic Vaporist

    Messages:
    8
    Location:
    Oregon
    Very nice indeed. I'm very much looking forward to it!

    graydeh1 likes this.
  6. graydeh1

    graydeh1 TRVP ATTY REP

    Messages:
    285
    Location:
    Toronto
    Thanks my friend. Cant wait til you start playin round with one :)

  7. graydeh1

    graydeh1 TRVP ATTY REP

    Messages:
    285
    Location:
    Toronto
    Olde7 likes this.
  8. Olde7

    Olde7 Electronic Vaporist

    Messages:
    8
    Location:
    Oregon
    graydeh1 likes this.
  9. graydeh1

    graydeh1 TRVP ATTY REP

    Messages:
    285
    Location:
    Toronto
    Yes The TRVP RDA is available now.

    ChurroForSure-O and Olde7 like this.
  10. Accept

    Accept Well-Known Member

    Messages:
    1,044
    Got one! Decent first impressions. The first build is just a mesh a strip in the ceramic crucible.

    Upon removing the mesh strip, found a significant amount of reclaim in the crucible. Did not get the full effect of this 20mg shatter dose. Disappointing - hoped it would work better out of the box.
    [​IMG]
    The mesh strip heated unevenly, mostly above the dab. Need to dry fire first to be sure the heat is where it needs to be - on the bottom. If this doesn't improve performance, maybe try using 2 mesh strips or a conventional coil.

    Edit: Worked better with two stacked strips, but this lowers resistance to 0.05 Ohms. Some mods call that a short.

    Also tried 4mm coil made with AVS hex-core fused clapton wire.
    [​IMG]
    Most of the dab just spilled out one side - needs to be melted in slightly.

    The curved glass drip tip is a very nice feature. Also came with a spare ceramic crucible and about 10 mesh strips, or you can use easy-to-find Vandy mesh spools. For the price, you'd expect such a generous package. Would have preferred spring-loaded screws to hold the bracket up when mounting a mesh strip or coil.

    Should this thread move to e-cig based portables now that it's available?

    Last edited: May 8, 2019
    graydeh1, KeroZen and Olde7 like this.
  11. graydeh1

    graydeh1 TRVP ATTY REP

    Messages:
    285
    Location:
    Toronto
    Hi the mesh strips are really not meant to be used on their own but there are a lot of people having success, I've asked the mods here to start a thread but I've gotten no response over the past month or so.... Look here for new content. Lots of users here getting amazing results including myself with almost no reclaim.
    www.reddit.com/r/the_trvp



    I tried putting the dab in the middle like that too but it actually doesn't work , its much better to put it on the top of that fat coil.

  12. Accept

    Accept Well-Known Member

    Messages:
    1,044
    The mesh/coil in parallel sounds good, but the resistance of mesh strips is already low (~0.12 Ohms). Adding a second strip or coil cuts it in half. That's about as low as it goes.

    Thanks for the link! Looks like the best results are filling the crucible with metal. Easy enough. Wanna try framed staples and vertebraid. Maybe some pretty pictures of Mohawk Aliens for coilporn.

    For now, introducing dabstrips! Measured, portable and disposable. Just sandwich a dab between mesh strips and roll flat. Wrap a few in parchment paper like sticks of chewing gum. (This might be @stickstones idea from the Vandy Mesh thread.)
    [​IMG]
    2 for 2 so far - minimal reclaim.

    Still not getting the same flavor blast as the Molecule. Must be the tiny volume. This is more like earlier DIY results with e-cig gear. But it takes work to get those flattened Molecule coils firing evenly. There's less of that with the TRVP, especially with mesh.

    @2clicker - new dab atty!:rockon:

    graydeh1 likes this.
  13. Accept

    Accept Well-Known Member

    Messages:
    1,044
    The dabstrips were 3 for 5 - too much waste. Happy to finally report top-notch results.

    [​IMG]
    A flattened coil, like in the Molecule. Making them daily, it's getting easier. AVS hex-core fused clapton, 7 wraps, 2.5mm. Hanging just below the rim of the crucible so there's room for airflow beneath. The atomizer top directs air diagonally downward into each end of the crucible, so you're drawing it up through the coil as the dab is vaporizing.

    [​IMG]

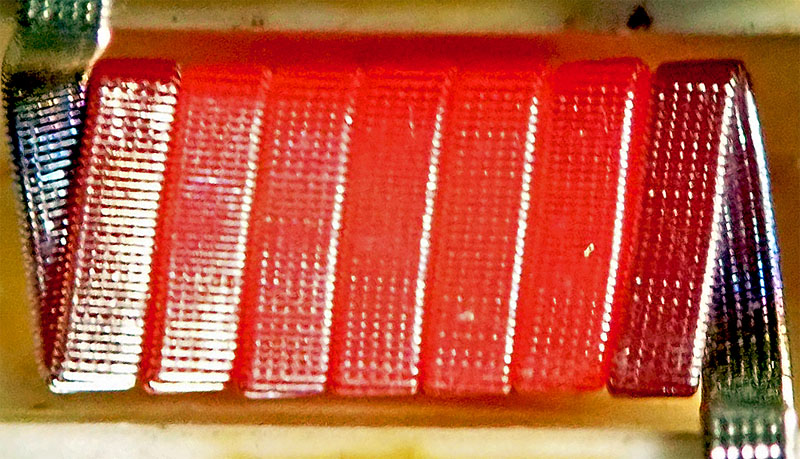

    Nice, even glow.

    [​IMG]

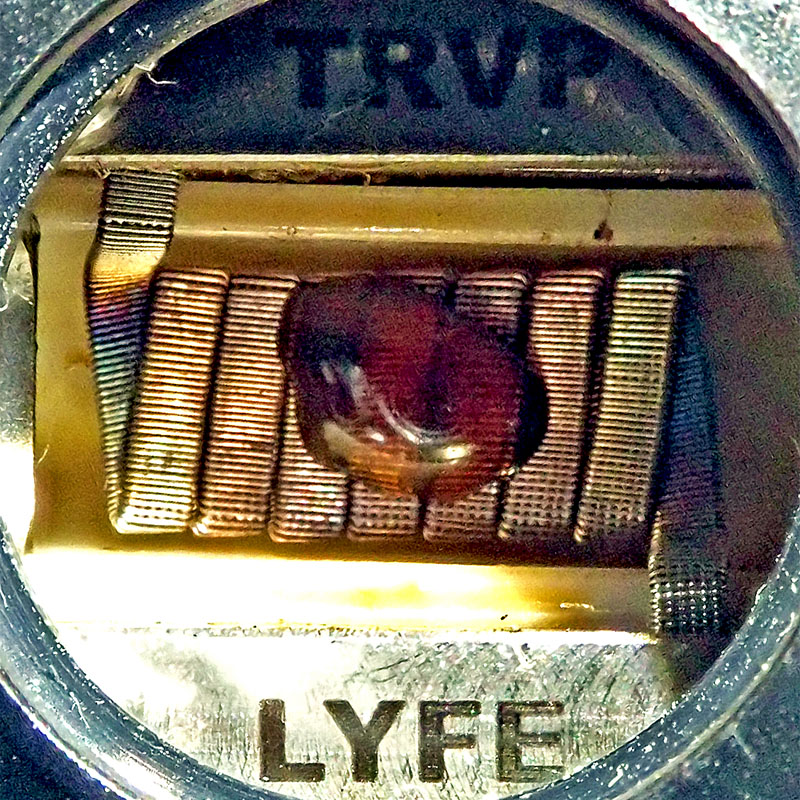

    ~15mgs shatter with the top on.

    [​IMG]

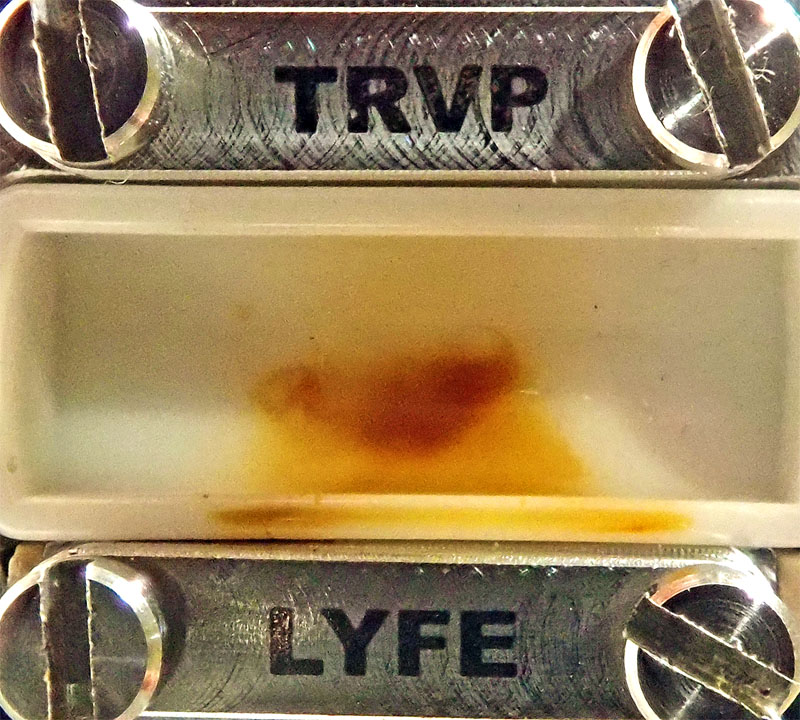

    Least reclaim and mess by far compared to mesh and cylindrical coils of several types.:tup:

  14. graydeh1

    graydeh1 TRVP ATTY REP

    Messages:
    285
    Location:
    Toronto
    Hello any mods of Fuckcombustion, this product has been released and I want to make a thread in FC. I need help please.

    PPN likes this.
  15. PPN

    PPN Fleurs&Vapeur

    Messages:
    3,889
    You can ask to the mod to move this thread to the portable section!

  16. Obsessed 2

    Obsessed 2 Well-Known Member

    Messages:
    148
    Location:
    South Jersey
    @graydeh1 I've been watching your TRVP development with enthusiasm. I recommended the trvp on reddit and got an interesting question in reply. Any playing around in the past or are there any plans for a future Ti bucket? Thanks!

  17. graydeh1

    graydeh1 TRVP ATTY REP

    Messages:
    285
    Location:
    Toronto
    I'm not sure what's going on I have private messaged two or three mods and asked in several comments to make a thread for the trvp, we're doing the V2 now!

    Can a mod please message me, thank you.

    sirwalter and Olde7 like this.
  18. graydeh1

    graydeh1 TRVP ATTY REP

    Messages:
    285
    Location:
    Toronto
    Hello everyone thanks for all the support, we're going strong with the V2 of the trvp now.

    Thanks a lot to my friends for getting This thread moved and thanks a lot to FC, we really appreciate this.


    Some pics

    http://imgur.com/a/UpW5fqR

    Last edited: Aug 30, 2019
  19. graydeh1

    graydeh1 TRVP ATTY REP

    Messages:
    285
    Location:
    Toronto
