  1. ZC

    ZC Well-Known Member

    Messages:
    738
    If the cord ends up coming out the bottom you can still rest it on the side without rolling, the button would provide a natural stop.

    But it's possible the final model will have the outlet on the side like other logs, which would allow it to stand upright when not in use.

  2. HD Springer

    HD Springer Well-Known Member

    Messages:
    964
    Im thinking and hoping that with the 2 party's working together then we will have very little stumbling blocks.
    I mean we have a proven heater from the Mi and then you add one of the very best log builders in the game adding his knowledge. I'm not sure you could draw up a better recipe for the success of this project. Only time will tell.

    Philreal187, killick, KeroZen and 8 others like this.
  3. Alan

    Alan Master JedHI Manufacturer

    Messages:
    1,036
    Location:
    Denver area
    Thank you so much @RastaBuddhaTao for giving me the opportunity to work with you on this collaboration. Hope we can make something really special for everyone to enjoy. Looking forward to working @ZC and @KeroZen and everyone else on this project.

    I have been using a 10A DC/DC buck converter w/ digital display and a fake battery to power a Milaana with great success. I installed an input power socket so it can be fed by a 12v 10A power supply, but the output wires are still connected to the screw connections. I will be adding output connections which will allow it to connect to the Mi-Log and also to a fake battery for the Milaana. Audiophile type connectors should handle the amp requirements for the cable and look very nice. They are available in a variety of styles. Have found poly cloth covered twisted pair cable in almost any color or pattern imaginable. The combinations of cable and plug end are vast.

    Will keep everyone updated on the progress.

  4. turk

    turk turk

    Messages:
    1,976
    Location:
    San Francisco
    ....I'm sure we will experience a quality product...cheers guys.

    cybrguy, Vape Dr., SteamfunQ and 3 others like this.
  5. Cl4ud3

    Cl4ud3 Well-Known Member

    Messages:
    450
    Location:
    Wales
    Put me down for one now :rockon:, that's such an awesome idea, maybe we can get a Zion fake battery connector too :brow:

    KeroZen, cybrguy, Vape Dr. and 6 others like this.
  6. arrr

    arrr Well-Known Member

    Messages:
    344
    Definitely interested in this. I really want to try the mi but it's out of my price range atm. I can swing $100 which would allow me to get /try an mi. Cant wait.

    Philreal187, Vape Dr., P.A.M. and 2 others like this.
  7. P.A.M.

    P.A.M. Vapo Rising

    Messages:
    147
    Location:
    Planet Earth, North America
    Posting to get the thread notifications for updates :) this should be a very interesting beast you guys are about to unleash ! nice to see fellow builders come together. vape on !

  8. jpdnkstr

    jpdnkstr Well-Known Member

    Messages:
    704
    Location:
    Third Coast
    I'm watching this one...

    Philreal187 likes this.
  9. Diggy Smalls

    Diggy Smalls Tom Cruises

    Messages:
    647
    Location:
    Timbuktoo
    I'll be honest...I don't own a Milana and won't be getting to ever try one, so I was a little confused about this concept.

    I think I'm still a little confused, but at least I understand the concept of a manual log. It sounds interesting, but not for me. I have no issue leaving my logs on, and I am not very into a manual electric vape.

    It does sound cool though, and I'm excited to see where it goes. People are really trying to push the boundaries for a log vape this year!

    Last edited: Jan 18, 2017
    Philreal187 likes this.
  10. Hagbard Celine

    Hagbard Celine Discordian anarchist

    Messages:
    49
    Location:
    Fernando Poo
    Sounds really interesting. Excited to keep hearing more about it!

    Philreal187 likes this.
  11. DarkSm0ke

    DarkSm0ke Well-Known Member

    Messages:
    185
    Location:
    The Wild West
    Where do we sign up to get on the list? The project sounds and looks great! Can't wait, very excited!

    Philreal187 likes this.
  12. RastaBuddhaTao

    RastaBuddhaTao Well-Known Member Manufacturer

    Messages:
    721
    This project's value is in it's modularity. @Alan is working to develop new ways to physically adapt the Milaana heater tech to his design ways such as eliminating adhesive and accidental glass breakage in machined hardwood. The RBT logs will use the Milaana technology as designed to improve the volume position and to ensure a tested and proven design will hit the market. The RBT logs will use ADK river drift wood to add a splash of Mother Nature .... A literal log lol.

    Alan will lead the way investigating the list of potential cord sets. A US supply is preferred... With that said it's unlikely unless we standardize on a tried and true connector scheme that still has life in the states. We have decided on using a 12V 10 amp brick so that will drive the input connector. So the critical part of this is the connectors and cable leading between the Mi-log and the power supply. It needs to economical, reliable, rugged, supple, small and attractive. What is important to you customers? Any electrical engineers with any suggestions?

    As far as a power supply RBT plans to standardize on the Zion control system. This will again add to the RBT economies of scale and build off a proven reliable power electronics. It's small to... Just cut the top off the Zion and plug it in. It will also give the ability to run a 100 watt 22 mm monster desk top as well as a battery pack which lends I feels to future offerings.

    RBT's engagement in the project initially will be to supply HI the required parts and limited application guidance as Zion in now the focus. If all goes well the RBT Mi-log will come alive mid 2017... Until then my man Alan will be at the helm creating the first commercial Mi-logs.

  13. Hippie Dickie

    Hippie Dickie The Herbal Cube Manufacturer

    Messages:
    2,495
    Location:
    where the Cube rules!
    i like the W.S.Deans ultra plugs:

    [​IMG]

    they have gold contacts, a piece of spring steel to force the contacts together, wipes the contacts every time plugged together, polarized so it can't be plugged wrong, and can handle >50A of current.

    wide tip soldering iron (1/4") is best for easier soldering.

    i use the Deans Ultra Wire (16ga):

    They also make the Wet Noodle Wire:

    Female on the power supply, Male on the vape ... i recess it into my cube for cleaner appearance.

    Made in USA.

  14. KeroZen

    KeroZen Chronic vapaholic

    Messages:
    2,395
    Location:
    On Air
    Deans connectors are good indeed, but they fell out of fashion these last years. I would recommend to use XT60 connectors instead for various reasons:

    - They are cheaper
    - They are easier to unplug
    - They are easier to solder
    - They can handle 60A continuously
    - They can accept down to 10ga wires (but 12ga fits better)
    - They are less prone to shorts when ripped off (somewhat)

    We can even get them in black now, which is better looking for our application. I know for sure that the ones from HK are genuine, here's the link >> https://hobbyking.com/en_us/black-xt60-male-and-female-5-pairs-bag.html

    They are all the rage currently in the RC world, and are the defacto standard now that most Li-Po packs come standard with them. It means they are cheap and widely available.

    [​IMG]

    Banana plugs are good connectors but the risk of creating shorts when your stoned friend trips his feet on the cable ripping everything apart is too high. You can mitigate that by having one side all female and the other all male, but then you need to use heatshrink tubing on the female plugs, and it's not very good looking, doesn't age well and tends to leave a small gap (it's hard to make them perfectly fitted) So you need to have one wire shorter than the other, leading to something a bit goofy looking in the end...

    Now if you want really high-end connectors, we can continue looking and find something better.

  15. RastaBuddhaTao

    RastaBuddhaTao Well-Known Member Manufacturer

    Messages:
    721
    Thanks @Hippie Dickie and @KeroZen for the great suggestions. I do like the spade type connection and any connector used in the RC world have to handle high current and take a beating... arguably an overkill? I know @Alan likes the round plug as it's easier to recess it in a drilled hole... but it does seem like most connectors fit for this application are square making recessing in wood tricky. Molex makes some cost effective industrial connectors that would work nicely the are also Square. Plan is to have the plug come in from the bottom but it could come in at the split so the square shape can be machined easy with a router.... reaching is a PIA lol.

  16. Alan

    Alan Master JedHI Manufacturer

    Messages:
    1,036
    Location:
    Denver area
    I do indeed like round plugs since they can be held securely in place with a nut. Panel mounting is also important for the model of voltage controller I am currently using. All of the necessary parts arrived so I could put together a cord set to test out the banana style sockets. I'm using copper pennies for the fake Milaana battery ends. It works very well. The plugs easily handle the amperage. The input socket is on the right side of the unit, but could be placed on the back or the same side as the output sockets.
    Does anyone have a preference to the input socket location?

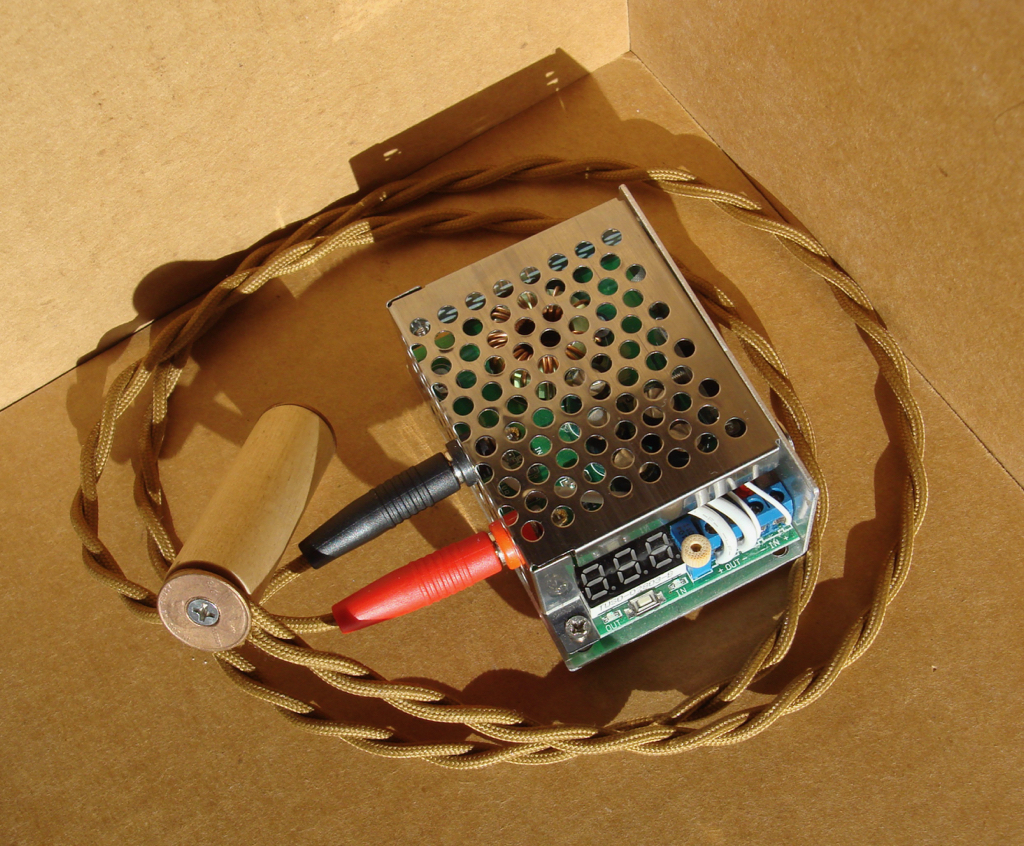

    So nice to have the digital display to control the temperature. The banana style sockets will also work for the wood MI-Log body. They will be tightened inside the wood by a nut on the hollow socket post.
    I found some silicone tubing that is the perfect size that when stretched over female glass fitting, it fits tightly into a 1" hole. It will provide a bit of cushion for the glass and ensure the fitting sits squarely in the hole. Happy to share anything I learn with Ryan.

    [​IMG]

  17. P.A.M.

    P.A.M. Vapo Rising

    Messages:
    147
    Location:
    Planet Earth, North America
    Great work Alan! Input socket might be good to have on same side or back of unit to limit the width of unit and the space it occupies .I also find when input is on left or right it limits/tangles wires if your plug is on the wrong side of the input .

    I might update my vvps box so that the input wire come in from back instead of left side.. That way my unit wouldnt be upside down or wires wouldnt be tangled if its plugged into wall outlet that is right side of the unit.

  18. Shit Snacks

    Shit Snacks Milaana. Lana. LANA. LAANAAAAAA

    Messages:
    4,219
    Location:
    Motion Pictures
    Yeah I also think back for cords makes more sense, like parallel to the trigger?
    Love that cord @Alan!

  19. RastaBuddhaTao

    RastaBuddhaTao Well-Known Member Manufacturer

    Messages:
    721
    Nice work @Alan ... I really like the penny... just my two cents :). The cord has a nice organic feel. What stops it from "un-twisting"? The connectors have a cool retro feel. Given that the Milaana heater swings both ways, meaning polarity of course, no orientation is needed. Keep in mind that given its low resistance the length of the cord and connector contact resistance will be a factor.

    I think I am leaning towards Molex style connectors in the spirit of DFMA. They are inexpensive, only one connector is required for multiple wires, and they use a crimp contact (no Solder). They are very robust as I have used them in high vibration environments like fuel cell forklift applications. They are a standard at most harness shops and are available through the big US electrics dealers. They will also recess easily into the PS box since I will be using the Zion control in a wooden enclosure with a split line.

    Looking forward to seeing the response to the beta units. It will be some time before I start on this with Zion and the 510 in line first but I'm sure all of your shared learning will be very helpful.

    have fun kids

  20. cwheezy

    cwheezy Well-Known Member

    Messages:
    618
    Location:
    where good things grow
    Is there a wait list for this or is there going to be ?

    Justpassedu, Lookatmeglow and grokit like this.
  21. Lookatmeglow

    Lookatmeglow I seem to have a bad case of VAS

    Messages:
    297
    Seconded this!

    Last edited by a moderator: Jan 28, 2017
    Justpassedu likes this.
  22. Alan

    Alan Master JedHI Manufacturer

    Messages:
    1,036
    Location:
    Denver area
    Thanks. I'm hoping the positions will allow the unit to still fit back into its original box. Will try the bock position for the next box.

    Wish there was enough room to put all the cords on the back. The output jacks pretty much have to go on the left side.

    Glad you like it. The pennies were cheaper than buying washers. The cord stays together from the stiffness of the wire. It is 18 gauge retro style lamp cord. I got some silver colored cable for the next batch of cords.
    Trying to keep the cord length reasonable to minimize additional resistance. A molex to banana plug cord is all that will be needed to interconnect between units and power supplies that we will be making. Hurry up with those Zion units so you can get to the Mi-Log. ;)

  23. little maggie

    little maggie Well-Known Member

    Messages:
    2,742
    Love my His and love my milaana. This is going to be so cool. But so far no one has responded to the waiting list questions. Is there one or will there be one?

  24. cwheezy

    cwheezy Well-Known Member

    Messages:
    618
    Location:
    where good things grow
    This ^

    HD Springer and Justpassedu like this.
  25. RastaBuddhaTao

    RastaBuddhaTao Well-Known Member Manufacturer

    Messages:
    721
    Yeh @Alan where is the waiting list lol. In all seriousness this is a HI project first and formost. RBT is engaged in this project to have the opportunity to work with one of the greats in the industry who has graciously agreed to invest in this endevor. It's possible that towards the end of the year a RBT Log might appear but first, Zion, Milaana roll-out and the 510.

    @Alan you have the floor sir... ya'll have a kick ass time
